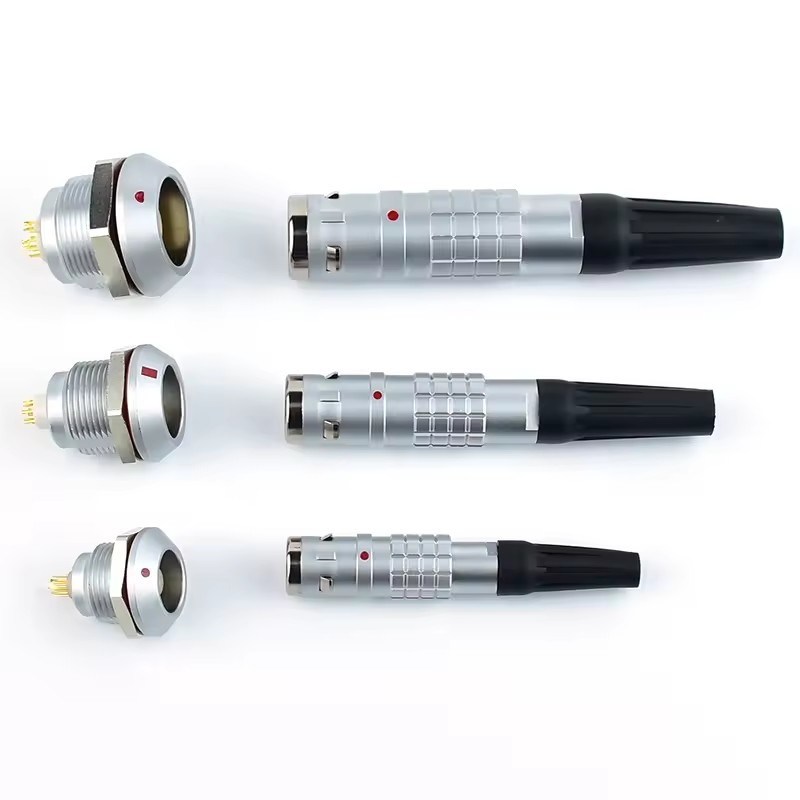

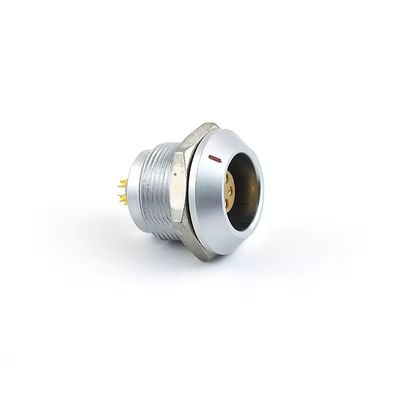

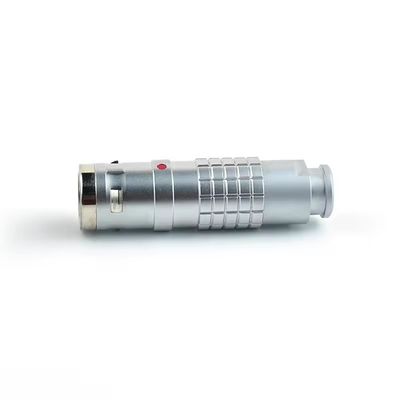

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Nombre De La Marca:	OEM
Número De Modelo:	FGG.0K.306
Cuota De Producción:	1
Precio:	Negociable
Condiciones De Pago:	Western Union, T/T, Paypal

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

CE.ROHS

Tamaño:

0K 1K 2K 3K

Aislante:

No hay pines.:

2 a 40 pines

Clasificación IP:

IP65 - IP68

Género:

Hombre y mujer

Resistencia (Shell):

5000 ciclos de apareamiento

Aplicaciones:

Audio y video

Rango de temperatura:

-55°C~+125°C

Humedad relativa:

hasta 95% a 60°C

Detalles de empaquetado:

pp pag

Capacidad de la fuente:

10000pcs por mes

Resaltar:

Lemo K Series aviation connector

2 to 40 pins FGG plug

male female socket connector

Descripción del producto

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Main Features

Mechanical life: >5000 times
Operating temperature: -45°C to +125°C
Waterproof grade: IP66 to IP68
Salt spray: 5% NaCl fog in 96h
Relative humidity: up to 95% at 60°C
Impact: 100g, 6ms
Vibration: 10-2000Hz, 15g
Air leakage: when 1.0-10'Pa pressure difference is applied at both ends of the socket, the leakage rate is not greater than 1.0Pa*cm/s
Water pressure: The plugged connector is immersed in 2m depth of water, after 24h, there is no water seepage at the connector interface, and after drying at room temperature for 30min, its insulation resistance should comply with the water pressure conditions stipulated in military standard 3.2.8

Specifications

Insert configuration	2 to 40 pins
Shell size	#0, 1 or 2K
Contact type	solder, print or crimp
1 key	Alpha: 0°
2 keys	Alpha: 30, 45 or 60°
Protection grade	IP66 to 68
Contacts material	bronze beryllium and gold-plated surface
Housing material	nickel-plated brass
Collet	nickel-plated brass
Insulator material	PPS and PEEK
Compatible with series	K/FGG/PHG/EGG and others including FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, K/S/F/SC series, ODU, Fischer, binder and redel connectors

Applications

Audio-video Aviation Communications Medical Military Test and Measurement Analysis Data Acquisition Data Transfer Equipment Module Power Sensor Sensor Systems Instrumentation

About Us

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly
100% compatible with original LEMO, FISCHER, ODU, HIROSES, BINDER, Military 38999
Series includes Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482
CO, Form A, Form E for customer clearance certificates available
CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
All items can work normally after 5000 times mating

Las etiquetas:

conectores circulares del lemo

conectores de la fibra óptica del lemo

conectores del triax del lemo

Productos relacionados

El video

Lemo K Series Compatible Waterproof IP68 Connectors Long Endurance with Brass Housing and High Voltage Test

Consiga el mejor precio

El video

Lemo K Series Self-locking Connectors Waterproof IP68 Plug And Socket For Medical Industry

Consiga el mejor precio

Detalles De Los Productos

Hogar Productos

Serie de Lemo K

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Todas Las Categorías

Conectores de cable circulares

conectores circulares de vaivén

Conector de cable de Lemo

Conector de cable de Fischer

Conectores de la serie de Lemo B

Accesorios de la VISIÓN NOCTURNA

Serie S de Lemo

conector coaxial del lemo

Cable de conexión de la cámara

Serie de Lemo K

Conectores circulares plásticos

Conector circular impermeable

cables de alimentación personalizado

conector de la placa de circuito impreso

Conectores circulares de

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Nombre De La Marca:	OEM
Número De Modelo:	FGG.0K.306
Cuota De Producción:	1
Precio:	Negociable
Detalles Del Embalaje:	pp pag
Condiciones De Pago:	Western Union, T/T, Paypal

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Porcelana

Nombre de la marca:

OEM

Certificación:

CE.ROHS

Número de modelo:

FGG.0K.306

Tamaño:

0K 1K 2K 3K

Aislante:

PPS

No hay pines.:

2 a 40 pines

Clasificación IP:

IP65 - IP68

Género:

Hombre y mujer

Resistencia (Shell):

5000 ciclos de apareamiento

Aplicaciones:

Audio y video

Rango de temperatura:

-55°C~+125°C

Humedad relativa:

hasta 95% a 60°C

Cantidad de orden mínima:

Precio:

Negociable

Detalles de empaquetado:

pp pag

Condiciones de pago:

Western Union, T/T, Paypal

Capacidad de la fuente:

10000pcs por mes

Resaltar:

Lemo K Series aviation connector

2 to 40 pins FGG plug

male female socket connector

Descripción del producto

Alternatives Lemo K Series 2 to 40 Pins FGG EGG EEG PHG Male Female Plug Socket Aviation Connector Factory

Main Features

Mechanical life: >5000 times
Operating temperature: -45°C to +125°C
Waterproof grade: IP66 to IP68
Salt spray: 5% NaCl fog in 96h
Relative humidity: up to 95% at 60°C
Impact: 100g, 6ms
Vibration: 10-2000Hz, 15g
Air leakage: when 1.0-10'Pa pressure difference is applied at both ends of the socket, the leakage rate is not greater than 1.0Pa*cm/s
Water pressure: The plugged connector is immersed in 2m depth of water, after 24h, there is no water seepage at the connector interface, and after drying at room temperature for 30min, its insulation resistance should comply with the water pressure conditions stipulated in military standard 3.2.8

Specifications

Insert configuration	2 to 40 pins
Shell size	#0, 1 or 2K
Contact type	solder, print or crimp
1 key	Alpha: 0°
2 keys	Alpha: 30, 45 or 60°
Protection grade	IP66 to 68
Contacts material	bronze beryllium and gold-plated surface
Housing material	nickel-plated brass
Collet	nickel-plated brass
Insulator material	PPS and PEEK
Compatible with series	K/FGG/PHG/EGG and others including FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, K/S/F/SC series, ODU, Fischer, binder and redel connectors

Applications

Audio-video Aviation Communications Medical Military Test and Measurement Analysis Data Acquisition Data Transfer Equipment Module Power Sensor Sensor Systems Instrumentation

About Us

Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly
100% compatible with original LEMO, FISCHER, ODU, HIROSES, BINDER, Military 38999
Series includes Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482
CO, Form A, Form E for customer clearance certificates available
CE, ROHS, ISO:90001-2008, SGS Audited manufacturer
All items can work normally after 5000 times mating
