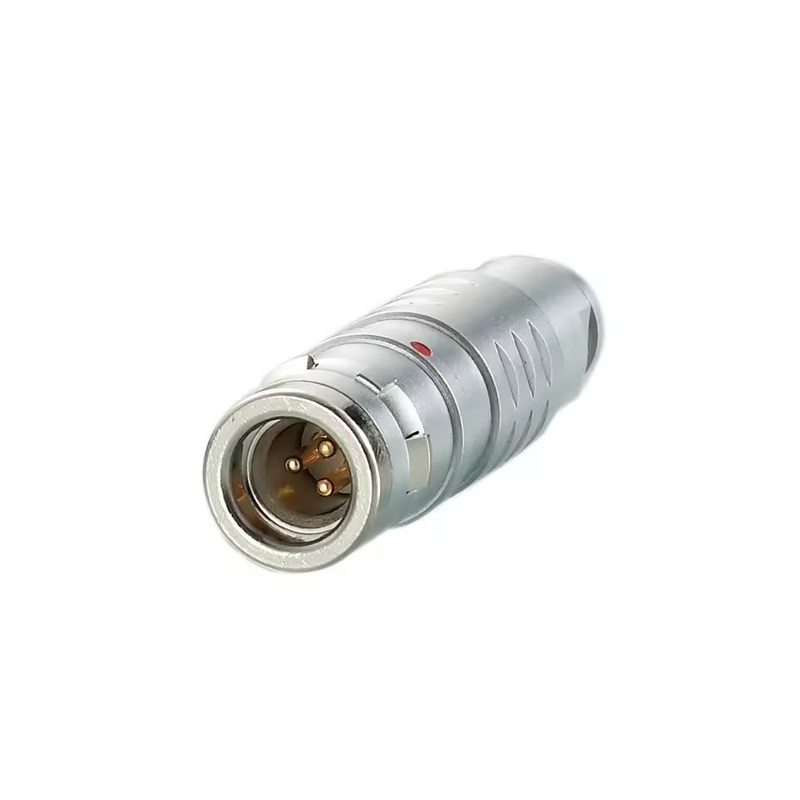

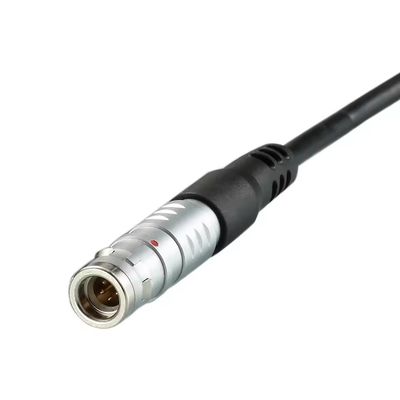

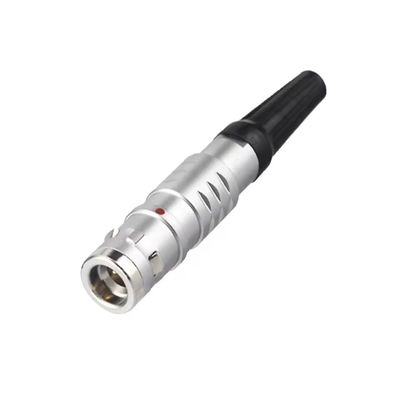

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Nombre De La Marca:	Ebuddy
Número De Modelo:	Eb-tgg.0k.303
Cuota De Producción:	1
Precio:	Negociable
Tiempo De Entrega:	3-5 días para muestras
Condiciones De Pago:	L/C, T/T, Western Union, PayPal

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

CE,ROHS

Patas:

3-32pin hombre y mujer

Color:

Plata

Materiales:

de latón cromado

Paquete:

PP Bag, para ser personalizado

Tamaño:

LEMO 0K-2K

Estilo:

Enchufe y zócalo

Material de contacto:

Aleación de cobre

Tipo de contacto typecontact:

Soldar

Detalles de empaquetado:

Paquete estándar

Capacidad de la fuente:

100000 piezas por mes

Resaltar:

Lemo K Series waterproof connector

IP68 solder push-pull connector

Lemo K Series compatible connector

Descripción del producto

Compatible Lemo K Series Push-Pull Connector Waterproof IP68 Solder Connector

Product Features

Quick push pull self-latching system
Solder, crimp or print contacts
Straight or elbow 90°
Multiple keying options to avoid mismating
Full EMC shielding
Multi-pole 2 ~ 32 contacts
High-density installation to save space
Mating cycles: >5000 times
Humidity: at 60°C, max. up to 95%
Temperature range: -45° to +125°
Vibration: 10-20,000HZ, 15g
Mechanical shock: 100g.6ms
Salt fog corrosion: >48h
Protection class: IP67

Technical Specifications

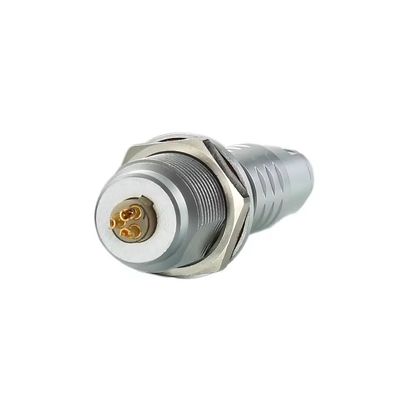

Shell Style/Model	FGG male plug and EGG female Receptacle
Keying	1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material	Brass (black chrome) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces
Rated Current	7A
Contact Dia	0.7 mm (0.028in)
R (max)	6.1 mOhm
Contact Type	Solder
Vtest	700-1000V
Endurance (Shell)	5000

Product Drawings

Application

Frequently Asked Questions

1. Are your company a professional manufacturer?

Yes, we specialized in producing circular push pull connectors and cable assembly since 2015. We have the series connectors and cable assembly like Lemo-B, Lemo-K, Lemo-S, Lemo-F, Lemo-E, Hirose-HR10A, Lemo-P, M4, M12, M16, BNC, B680, B423, 38999, 26482.

2. What is the MOQ?

No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample:

Available. Any needs, please contact us.

4. What about the delivery time?

Sample for 1-2 working days, mass production for 5-10 working days.

5. What is your payment terms?

We accept most of the payment methods, but mainly accept TT, LC, Paypal.

6. Does your product have any warranty?

Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
