Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Nombre De La Marca:	OEM
Número De Modelo:	HUEVO DE FGG
Cuota De Producción:	1 por ciento
Precio:	Negociable
Tiempo De Entrega:	3-10 días hábiles
Condiciones De Pago:	En el caso de las empresas de servicios financieros, el importe de las cuotas de los servicios finan

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

China.

Certificación:

CE,ROHS

Serie:

Serie Lemo B

Contactos:

2-16PIN

Aislante:

P:PPS

Método de terminación:

Soldar

Ciclos de apareamiento:

5000 veces

Tipo de contacto:

Enchufe masculino y enchufe femenino

Calificación IP:

Material:

Latón

Color:

Negro plata

Detalles de empaquetado:

Bolsa de pp

Capacidad de la fuente:

50000 piezas por mes

Resaltar:

Lemo B Series circular connectors

self-locking Lemo B connectors

EGG FGG 2-16 pin connectors

Descripción del producto

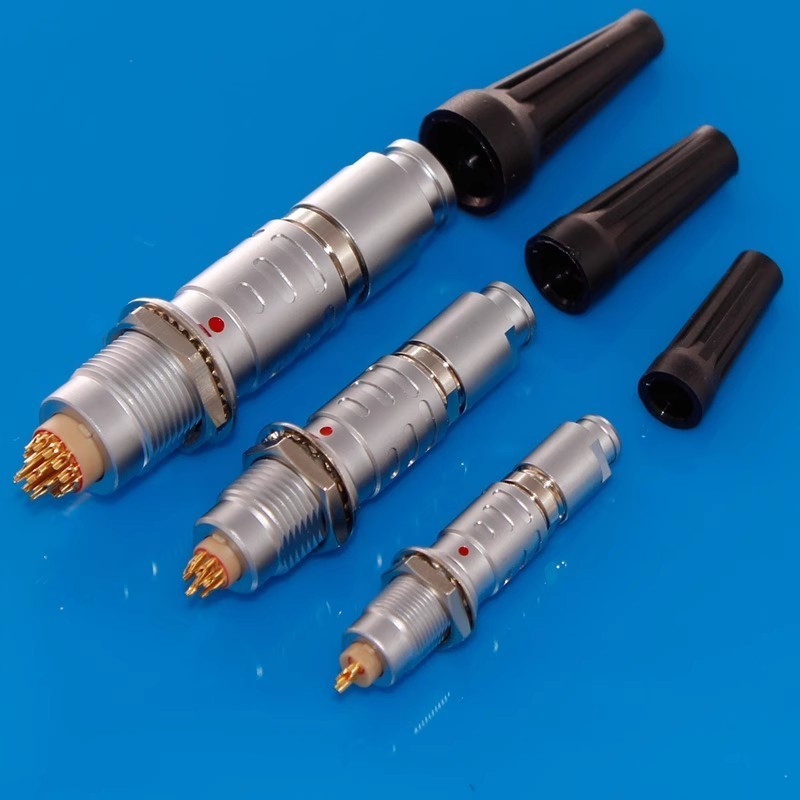

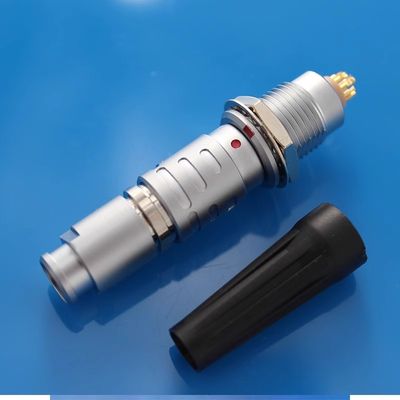

Lemo B Series Connectors Male Female EGG FGG 2-16 Pin Circular Self Locking Connectors

Product Features

100% compatible Lemo B series FGG male plug & EGG female socket
0B 1B 2B 2-16pins free socket for extension cable
Application: Audio & Video, Automotive, PCB, Communication, Aviation
Housing Material: Brass chrome plated
Mating cycles: 5000 times
IP Rating: IP50

Applications

Medical Equipment
Test & Measurement
Industrial Automation
Defense and Aerospace
Broadcast and Professional Audio/Video (AV)
Research and Scientific Instruments

Size & Drawings

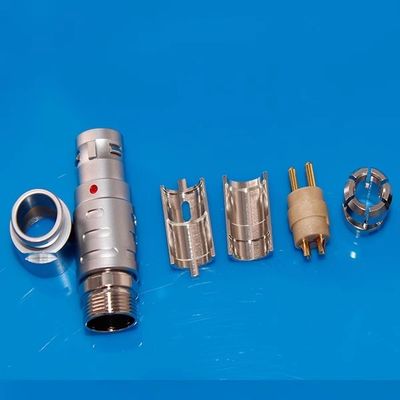

DIY Cable Assembly Process

Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldered insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
Put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
Push the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly
Hitch the sleeve to the corresponding step of collet nut

Frequently Asked Questions

About Price

Q1: Will you please let us have an idea of your price?

A1: In general, our prices are given on a EXW basis.

Q2: Do you give any discount?

A2: I'll surely try my best to help you get those by the best price and good service at the same time, if your order is big enough.

About MOQ

Q3: What is the MOQ?

A3: No MOQ limited, small order is accepted, all is depend on customer real needs.

About Delivery

Q4: What about our request for the early delivery of the goods?

A4: I think we can meet your requirement.

Q5: How long and how to get sample from us?

A5: 1) If you need some sample, we can make as per your request. You should pay for the transportation freight of samples and sample cost. The sample cost can be refundable if order is confirmed.
2) Lead time for making sample: about 2 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.

About Company

Q6: How about your quality control?

A6: All the products will be 100% double check before the shipment.

Q7: How do you make our business long-term and good relationship?

A7: 1) We keep good quality and competitive price to ensure our customers benefit.
2) We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

About Payment

Q8: What payment methods your company accept?

A8: We accept most of the payment methods, but mainly accept TT, LC, Paypal.
